Hiner-Pack Standard Colorfully JEDEC IC Tray For Hold Micro IC Components
Fully compliant with JEDEC standards, yet flexible enough to support non-standard cavity sizes—just send us your mind.
JEDEC Solid State Technology Association is the leading standards body for the microelectronics industry. JEDEC was founded in 1958 as part of the Electronics Industry Association (EIA) to set standards for the emerging semiconductor industry. In 1999, JEDEC became an independent association and changed its name to JEDEC Solid State Technology Association.
JEDEC trays are a standard-defined tray for transporting, handling, and storing complete chips and other components, and the production comes in the very same outline dimensions of 12.7 inches by 5.35 inches (322.6 mm x 135.89 mm). Trays come in a number of different profiles.
In the microelectronics industry, JEDEC IC trays are typically made of molded plastic pellets.
This ensures that the JEDEC standard tray is very robust, with minimal warping control for maximum protection of these compone.
Many JEDEC Matrix tray slots are designed in the middle of the tray to allow automatic equipment to pick up the loaded product.
The 45-degree chamfer is also easier for equipment to identify and locate, thereby reducing labor costs.
Application:
1. Semiconductor
2. Electronic Component Factories
3. SMT Factories
4. Optical Industry
5. Military Industry
Technical Parameters:
| Brand | Hiner-pack | Outline Line Size | 322.6*135.9*7.62mm |
| Model | HN22018 | Cavity Size | 5.35*4.55*1.28mm |
| Package Type | N/A | Matrix QTY | 38*18=684PCS |
| Material | MPPO | Flatness | MAX 0.76mm |
| Color | Blue | Service | Accept OEM, ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | RoHS SGS |
| Size | Can be customized |
| Item Material | ABS / PC / MPPO / PPE... acceptable |
| OEM&ODM | YES |
| Item Color | Can be customized |
| Feature | Durable; Reusable; Rcofriendly; Biodegradable |
| Sample | A. The free samples: chosen from existing products. |
| B. customized samples as per your design/demand |
| MOQ | 500pcs. |
| Packing | Carton or as per the customer's request |
| Delivery time | Usually 8-10 working days, depending on order quantity |
| Terms of Payment | Products: 100% prepayment |
| Mold: 50% T/T deposit, 50% balance after sample confirmation |
Service:
1. We offer an ESD total Solution to customers. Many other related products are available if needed.
2. OEM is welcomed or designed according to customer request.
3. The best & professional sales services.
4. Honest but competitive price and Quality assured quotation.
5. 100% QC inspection before shipment.
FAQ:
Q1: Are you a manufacturer?
Yes, we are a 100% manufacturer specialized in packaging for over 12 years with a 1500 square meter workshop area, located in Shenzhen, China.
Q2: What information should we supply if we want a quotation?
Drawing of your IC or component, Quantity, and size are normally.
Q3: How long could you prepare samples?
Normally, 3 days. If customized, open a new mold 25~30 days around.
Q4: How about batch order production?
Normally, 5-8 days or so.
Q5: Do you inspect the finished products?
Yes, we will inspect according to the ISO and RoHS standards and be ruled by our QC staff.
Product Tags:
|
|

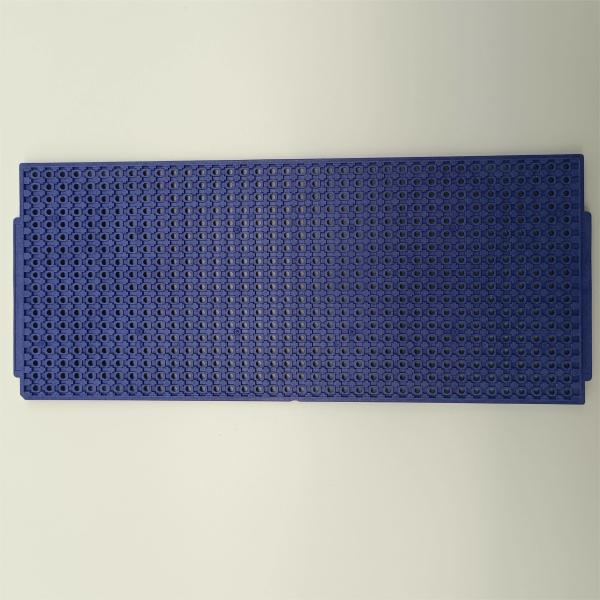

Hiner Pack Standard Colorfully JEDEC IC Trays For Micro Components Images
|
